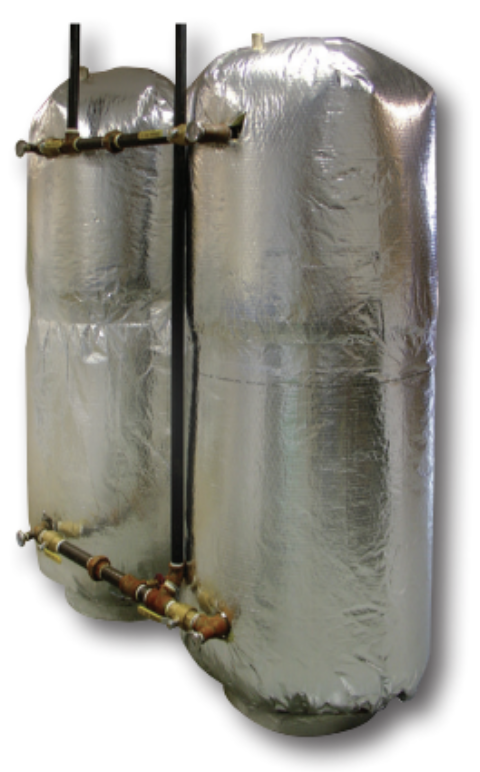

Pressurized thermal storage uses sealed, insulated water tanks that store heat under pressure, allowing higher temperatures and more efficient energy use. These tanks act like heat batteries, absorbing energy during high-output burns and releasing it when needed.

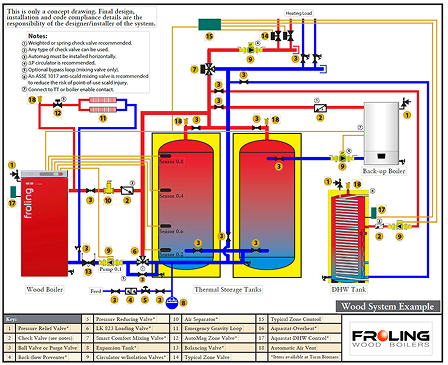

Piping & System Integration
Many different piping options exist when using one or more thermal storage tanks. Some options include:

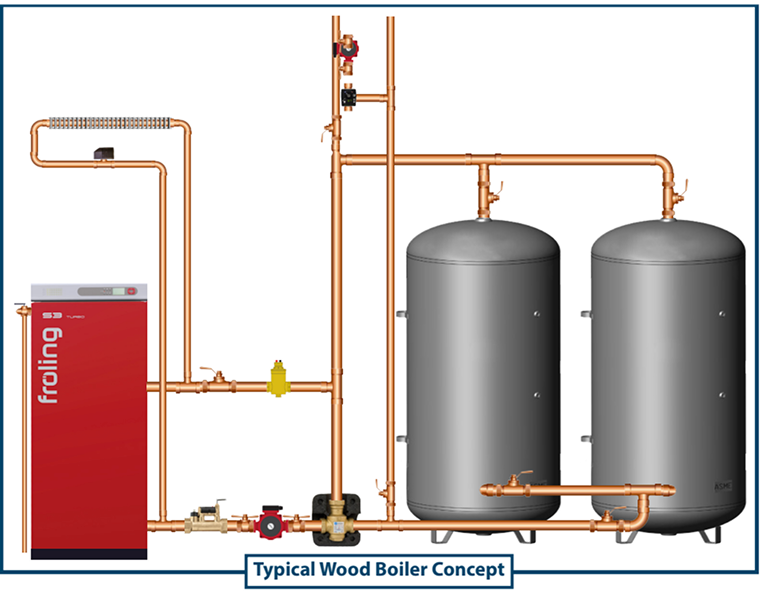

Parallel reverse return (Tichelmann System): Use this system with one to four tanks of the same size or in the same space. The equal pipe lengths for supply and return maintain balanced charging and energy use.
Series connection: If the tanks are of different sizes or in other locations, a series connection ensures the best operation. The first tank will charge completely, and then the next tank will be charged in the series. Reverse flow removes energy from the tank.
Froling Wood Boilers has many plumbing drawings available to address your thermal needs.
Pressurized thermal storage tanks play a vital role in optimizing the performance of wood and pellet boilers. By storing excess heat generated during burn cycles, these tanks help maintain efficient operation and reduce fuel consumption.
Below you will find everything you need to know about tank sizing:
Wood Boiler Tank Sizing
Boiler Model
Volume (gals)
Fröling S3 Turbo 30
600-900 gal
Fröling S3 Turbo 50
800-1200 gal
Burning boilers continuously at full output produces cleaner emissions and greater efficiency, but often generates more heat than needed. Heat storage tanks absorb this extra heat and store it for later use, acting as a buffer between the boiler and the heating load. Well-insulated tanks allow longer intervals between boiler cycles, giving wood boiler owners more flexibility.
Pellet Boiler Tank Sizing
Boiler Model
Volume (gals)
Fröling PE1 20
119-220 gal
Fröling PE1 35
220 gal
Fröling P4 100
600 gal
Automatic wood pellet boilers modulate heat output and start/stop automatically, but wood fuel’s slow ignition and variable heating demands make heat storage tanks essential. Heating needs fluctuate daily and seasonally, sometimes dropping below boiler minimum output, forcing shutdowns. Heat storage tanks allow boilers to run longer, storing excess heat and reducing frequent on/off cycles. This improves efficiency, lowers wear, saves fuel and electricity, and reduces emissions.

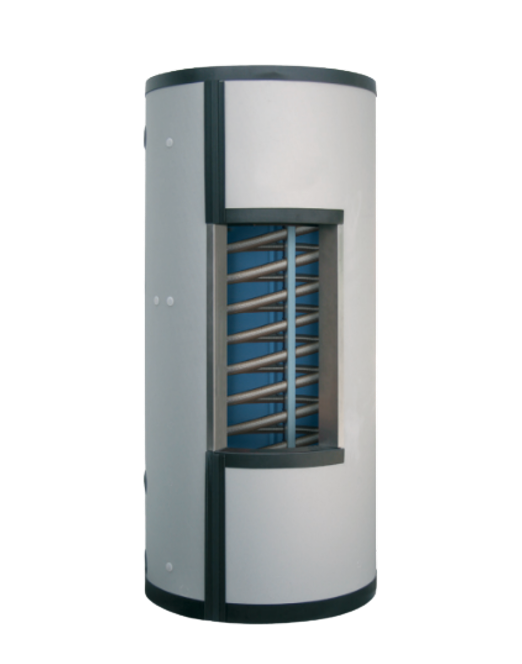

Fröling Energy Tank
The 119 gallon Fröling Energy Tank is an innovative indirect domestic hot water and thermal storage tank in one, designed to work seamlessly with small pellet boilers. This all-in-one solution reduces boiler cycling, extends equipment life, and lowers fuel usage while offering reliable hot water for bathing, handwashing, cooking, and cleaning.
Built for Best Performance
Our thermal storage tanks are pressure-rated, ASME certified and made to meet demands of high-efficiency biomass systems.
Pressure-rated up to 125 psi
Built to handle high-performance systems, our thermal storage tanks maintain safety and efficiency under elevated pressure conditions—ideal for modern biomass boiler setups
Certified with the ASME U-stamp
Each tank meets rigorous ASME Section VIII standards for pressure vessels, ensuring long-term durability, safety, and compliance with building codes across North America.

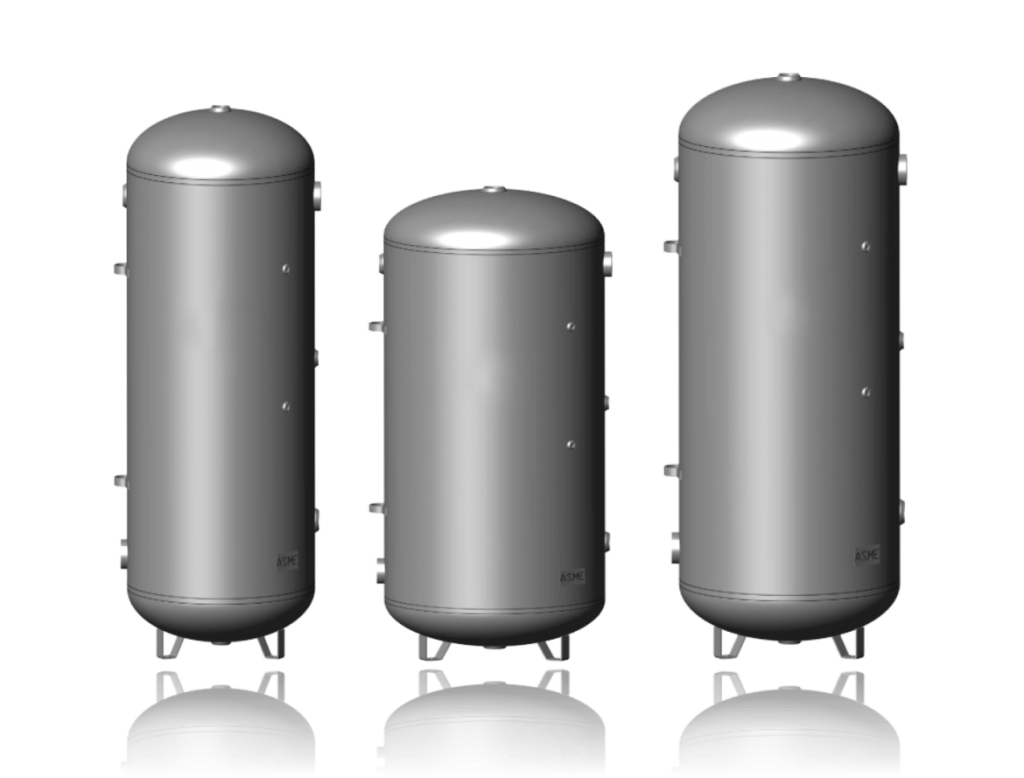

Sized to fit your system
You can choose from:
119 gal, 30” Dia, 73” Tall
220 gal, 30” Dia, 77” Tall
300 gal, 36” Dia, 73” Tall
400 gal, 36” Dia, 95” Tall
Froling Wood Boilers will work with you to appropriately size your thermal storage system
Minimal maintenance, maximum lifespan
Our tank’s closed, oxygen-free design help prevent corrosion
How many years does a pressurized water storage tank last?
A high-quality, ASME-certified pressurized tank can last 20 years or more with proper installation and water quality. Their oxygen-free design and robust carbon steel construction ensure a long lifespan with minimal upkeep.
How much does a new pressure tank cost?
Costs vary based on size, material, and certification, but a quality pressurized thermal storage tank typically ranges from a few thousand dollars up to $10,000 or more, including larger capacities and insulation. Always factor in installation and system integration.
