Fröling P4 Automatic Wood Pellet Boiler
High Efficiency Commercial Pellet Boiler
The P4 automatic wood pellet boiler by Fröling is a proven performer!
The award-winning Fröling P4 automatic wood pellet boiler is one of the world's most advanced wood pellet boilers with lambda control. The best-in-class Fröling P4 wood pellet boiler has an award-winning, 10-year track record in the United States. Fröling P4 wood pellet boilers are a convenient and environmentally safe way to heat your space or water.
Remarkably high efficiency, low costs and convenience of using an abundant renewable fuel give P4 owners confidence in their appliance. With its ingenious, fully automated operation, this wood pellet boiler is amazingly easy to use. The P4 wood pellet boiler provides the convenience of gas or oil central heat with lower fuel bills. The boiler is covered by a five-year limited warranty.
Available models include:
• Fröling P4 Wood Pellet Boiler 48/60- 163,780-200,000 Btu/hr
• Fröling P4 Wood Pellet Boiler 80/100- 273,000-341,000 Btu/hr
Benefits of the Fröling P4 Pellet Boiler
From straightforward installation to high fuel efficiency, the Fröling P4 boiler provides several advantages compared to other boilers. We think you'll be impressed with all the benefits you'll receive from using the Fröling P4 pellet boiler system:
Easy fuel storage: A pair of two inch hoses transport fuel from the storage area to the boiler. Multiple pellet storage options can fit any space.
Carbon-neutral: The Fröling P4 produces very low emissions. Since it uses wood, which is a carbon-neutral fuel, the boiler is an environmentally-friendly and carbon-neutral heating option.
“Plug and Play” installation: The Fröling P4 is shipped fully assembled and ready for connection to plumbing and wiring..
Sound insulation: Special attention has been taken to ensure quiet operation. Many people are surprised how quiet P4 boilers are compared to oil burners.
Convenient operation: Boiler refueling and heat exchanger cleaning are fully automated. Each time the boiler is turned on, the system self-tests to ensure safe operation.

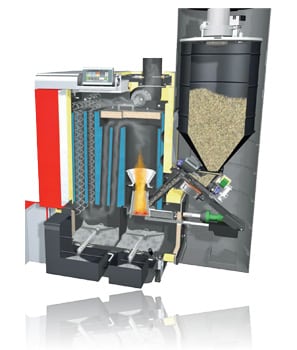

Boiler efficiency: The three-part, multi-layer heat exchanger ensures high boiler efficiency by removing the ash and guaranteeing low emissions.
User-friendly control panel: The touch-screen control panel and optional room console make operation user-friendly and intuitive. Fröling also offers free computer software for monitoring and controlling the boiler.
Long life span: The boiler's durable construction contributes to allows it to operate for a long time, making it cost effective and low maintenance operation..
Which applications are ideally suited for Froling P4 pellet boilers?
The Fröling P4 boiler is a hot water boiler for hydronic and forced air heating in commercial and institutional applications. Whether you need to heat a large commercial warehouse, a school, a highway garage, multi-family building, or a large office building , the Fröling P4 is a low maintenance, economical, and environmentally friendly option.
Taking advantage of your state's biomass boiler incentives can dramatically reduce initial capital expenditures as well as potentially reducing ongoing operating expenditures.. Several state incentives are listed below:
New Hampshire State Rebates (NH Public Utilities Commission)
• A rebate payment of 30% of the system and installation cost, up to a maximum of $50,000.
• Minimum 3-ton capacity for pellet fuel storage.
• An additional rebate payment of 30% for the installation of a thermal storage tank, up to a maximum of $5,000.
- $5,000 toward the installation of a heat meter to be used for selling thermal renewable energy credits (T-RECs).
Vermont Rebate Program (Efficiency Vermont and Vermont Renewable Energy Resource Center)
• $3,000 cashback after purchase.
• Rebates are for new, high-efficiency wood pellet boilers and furnaces that are installed as primary central heating systems.
• Replacement of natural gas-fired heating systems is not eligible.
• Systems must be classified as indoor systems and installed inside.
• Systems must be wood pellet only.
•Systems must have at least one week of fuel storage and automated on/off and fuel feed.
Commercial buildings over 5,000 square feet may be eligible for funding of up to $1.25 per square foot. Please contact Renewable Energy Vermont for more details.
Vermont Renewable Energy Resource Center
• $3,000 incentive per installed pellet boiler.
• The system must be able to continuously operate under peak load conditions for at least 14 days.
• The system must provide an automated fuel feed in an integrated path to the burn chamber.
• Automated on/off fuel feed control based on heat demand.
• Bulk fuel storage systems must be able to receive automated bulk delivery of pellets.
• Customers are eligible for a $500 Pellet Storage Upgrade Adder for pellet storage systems with at least 20 days of storage under peak load conditions.
• Residential and commercial installations qualify.
Massachusetts (Massachusetts Clean Energy Center)
• Mass save HEAT Loan - 0% for seven years; up to $25,000.
• Alternative Energy Credits - The amount varies.
Massachusetts Renewable Energy Credits
Maine (Efficiency Maine)
The Fröling P4 automatic wood pellet boiler, with its fully automated operation, can replace or supplement an oil or gas boiler in larger homes and commercial, industrial or institutional buildings. The Fröling P4 comes in two sizes with Btu/hr. ranges between 163,780 and 341,000 with the capability to cascade up to four boilers together. Self-cleaning features and large removable ash bins mean low maintenance.
The Fröling P4 100 wood pellet boiler is uniquely sized at 340,000 Btu/hr. From single boiler installations to four boilers in a cascade, the P4 100 has a proven track record as an economical, durable, high-efficiency performer. Please visit our blog to see many examples of commercial/institutional P4 wood pellet boiler installations in the United States.
The Fröling P4 Model 80/100 is ASME certified.
Learn More - Downloadable Brochures
Learn More - Videos
Speed-Regulated Draft Fan and Lambda Control
A speed-regulated fan combined with oxygen and temperature-based exhaust sensors allows Fröling wood pellet boilers to modulate output while remaining clean and efficient. The boiler can react to changing pellet fuel (harder/softer, more/less pitch, small/large pellets) while still remaining clean.
The use of oxygen control is less common, but it is the best way to ensure the cleanest burn possible. Standard large touch screens enable internet connectivity and the ability to view multiple functions at a single glance. Fröling controls track fuel use, maintenance and the function of all electric components.
All Fröling P4 Wood Pellet boilers have automatic ignition using a hot air gun that ignites the fuel quickly and effectively.
Easy to Clean
Fröling wood pellet boilers self-clean the combustion grate and heat exchanger so that combustion is safe, clean and controlled while extracting as much heat as is possible from your valuable fuel. The innovative three-pass design allows complete combustion, ensuring low emissions. Ash is collected automatically into two large ash containers, which can be emptied easily. Our average boiler owner only empties the ash boxes three to five times per year, depending on the amount of fuel used.
Industry-Leading Safety Concepts
P4 wood pellet boilers are inherently safe due to combustion zones being surrounded by water. Because regular use never requires access to combustion zones, there is no possibility for embers or fire to escape.
Fröling takes the safety concept to new levels by not only using hollow drop tubes to deliver fuel but also adding industry-leading double safety gates to isolate fuel storage from the combustion zone. It is impossible for both gates to be open during normal operation. The ingenious mechanical design coupled with advanced software ensures during self-testing that all components are ready before ignition is allowed.
Fröling Connect software allows free remote monitoring and control from web-enabled devices. You can read and modify the main status information and settings easily and conveniently online. It is also possible to store historic operating information and receive warnings such as when the ash box is full.
Fröling Connect allows the heating system owner to enable additional users like a family member, neighbor or service technician. Once the boiler is connected to the internet, the system can be accessed 24/7 from everywhere using a smartphone, tablet or PC with a web browser.
Pellet Storage Integration
Several options are available for pellet storage, including:
Universal System: One, two, or three suction probes uniformly provide complete emptying of the storage room via the standard equipment vacuum feeder included on each boiler.
Suction Screw System: The Suction Screw System is ideal for rectangular rooms with front-end removal. An auger carries fuel from the base of the bin to the vacuum pickup point, where pellets are then conveyed to the boiler using two, 2 inch hoses. Maximum hose run is 60’.
Bag Silo: The Bag Silo is pre-manufactured, flexible, simple and easy to assemble. Fuel is conveyed from the base of the bag silo to the boiler using two, 2 inch hoses. Maximum hose run is 60’
External Silo: An External Silo is great for commercial buildings or for use when there is inadequate interior space.
Here are two working P4 Wood Pellet Boiler Project Summaries. For more project summary examples on pellet, wood chip, and cordwood boilers please click here.
Quality, Safety, and Performance
P4 Pellet Boiler Features
The features of our P4 Pellet Boilers include:
• EPA Certified
• Safety Tested and Listed
• For Commercial Use
• Fully Automatic
• Bulk Fuel Ready
• Fully Factory Assembled
• Pneumatic Pellet Feed
• Lambda Controlled for Optimal Combustion
• Dual Safety Gates
• Cascade Control Available for Multiple Boilers
• Automatic Heat Exchange Cleaning
• Integrated Storage Tank Control
• Includes Solar Thermal Control
• Exhaust Temperatures Under 350 F
• Ash Boxes with Auger for Long Ash Removal Times
Discover Green Innovation Changing the Way We Stay Warm
The Fröling P4 Wood Pellet Boiler from Tarm Biomass is an excellent solution to your residential or commercial heating needs. The Fröling P4 burns wood pellets efficiently, reduces carbon dioxide emissions and creates cost savings over a long operating life. With automatic ignition, mechanized cleaning, advanced safety features and simple user controls, the Fröling P4 boiler is an important innovation in heating.
Claim your energy independence and start saving. Contact us to learn more about how to stretch your wood fuel further with the Fröling P4 Wood Pellet Boiler.
